FreeX FPV GPS RC Drone Quadcopter - RTF

Be the first to review this product

SKU KMCFX-05

Quick Overview

This is the new FPV (First Person View) version of the FreeX GPS professional RC quadcopter and it is very impressive indeed. The FreeX is packed with the latest RC drone technology and this FPV version takes things to another level. Not only does the 95mm LCD monitor built into the transmitter display a live stream from a camera mounted in the drone, but it also displays full flight telemetry! The package includes the 2-axis remotely controllable electric camera gimbal and a higher capacity 5400mAh battery.

FAST FREE SHIPPING ON ALL MAINLAND UK MODEL ORDERS. NOW OFFERING CLICK & COLLECT FROM OVER 1000 COLLECTION POINTS.

Click Here To Quickly Check Shipping Price

In stock

Only 5 left

€739.00
Related Products

With this product, you earn 739 loyalty point(s).

FreeX FPV GPS RC Drone Quadcopter - RTF

Click Below For Larger Images

Details

On unpacking you'll find all of the components come in their own protective compartment. These include a SkyRC E4 balance charger, USB cable for the firmware updates, propellers, various tools and a high capacity 11.1v 5400Mah LiPo battery for a longer flight time even with the extra weight of the gimbal and camera.

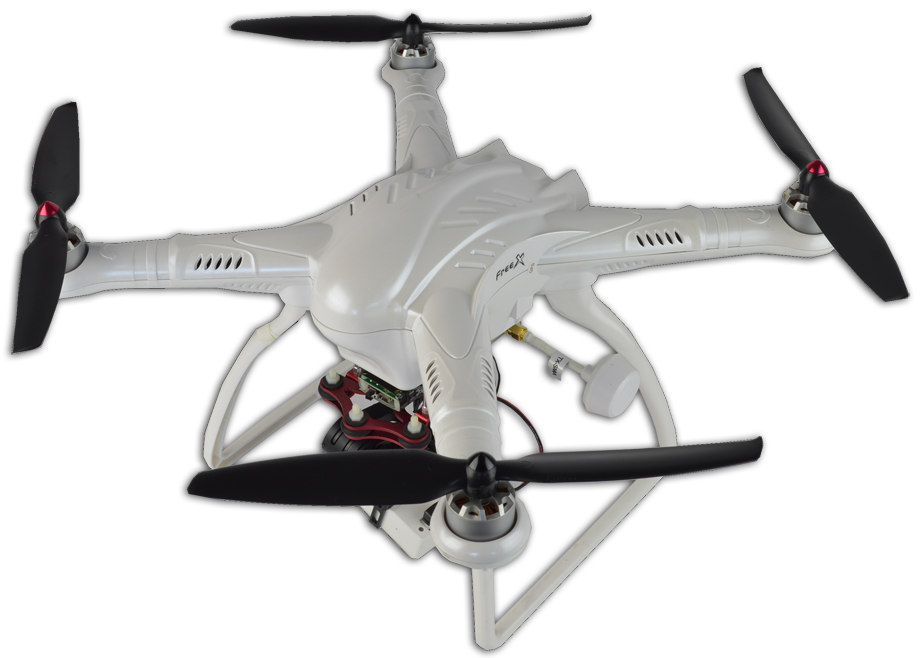

The first thing that we noticed was the beautiful pearlescent white large fuselage and larger landing skids to accommodate the built in gimbal. Just like the standard version of the FreeX, the FPV version is nearly ready to fly out of the box. The gimbal is already pre-attached to the quadcopter so all we needed to do was insert our camera, attach the propellers, insert the battery, do the compass collaboration and we were ready to go!

Turning the quadcopter on, we are met with the flashing lights under the propeller arms, the usual 2 lights – indicating you are pointing north and that you are connected to the GPS. The gimbal comes to life and a quick click of the button on the gimbal and it is collaborated and is ready to shoot.

The gimbal that comes pre-attached to the quadcopter is a 2 Axis full CNC brushless gimbal. It supports most small cameras including the SJ cameras that we sell and the GoPro 3 upwards (please note that the camera isn't included with the quadcopter). The camera is so very easy to attach – just loosen the 2 Allen key screws, slide the bar, fit the camera, tighten the screws, plug in and away you go.

Now to the next most important component - the awesome FPV transmitter with full telemetry on-screen display, built-in 5.8Ghz video receiver, and a 95mm LCD monitor!

With the transmitter you are able to control the gimbal with the circular pad enabling you to take photos and videos from better angles. Other features include headless mode capabilities, being able to support a memory card of up to 32GB so that you can store the video footage and the ability to take videos and take photographs at a flick of a switch.

On the awesome OSD LCD display screen, it tells you an abundance of information including; flight time, distance flown, speed, current height, direction and longitude and latitude!

The FPV version of the FreeX also has all the features found on the standard version such as fully automatic flight including position hold, altitude hold and compass mode. For full information click here to see the standard version.

Included In The Box:

  • FreeX Quadcopter
  • FreeX FPV transmitter (with LCD Display) and Receiver
  • 5.8G Video Tx and Rx (with Antennas)
  • Onetouch 4 Flight control board
  • FREE-X GPS module
  • 2 Axis full CNC Brushless Gimbal (Supporting GoPro, SJ4000 and Xiaomi Camera )
  • 11.1V 5400mAh LiPo battery
  • E4 Charger

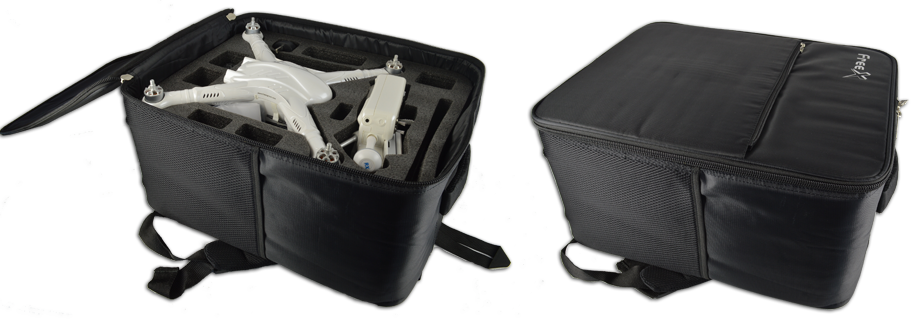

  • Carry case
Gyro


Box



Camera



Lights



Battery

Size



Transmitter

Additional Information

SKU KMCFX-05
Manufacturer Skyartec
Build RTF
Radio Equipment 2.4 GHz
Motor / Engine Brushless
Blades Single Blade
Channels 6 Ch
Specifications
  • Anchura y longitud: 280mm
  • Altura: 210mm
  • Base diagonal: 396mm
  • Tamaño de la hélice: Estándar 9 pulgadas (soporta hasta 10 pulgadas de hélice)
  • Tiempo de vuelo: Cerca de 15 minutos con estándar 11.1v batería 5400mAh
  • Peso: 1340g (incluyendo la batería, cardán y cámara)

Parámetros

  • Velocidad de ángulo de timón máximo: 150 ° /s
  • Ángulo máximo de inclinación: 45°
  • Velocidad de elevación máxima: 3.5 m/s
  • Velocidad de vuelo Max: = 30km/h

Electrónica

  • Motor: Motor sin cepillo de 1050KV 2212
  • ESC: 15AX Brushless ESC
  • : Receptor X gratis
  • Transmisor: Transmisor FPV FreeX con pantalla LCD
  • Batería: 11.1V 5400mAh de polímero de litio
  • Tablero de Control de lucha: FreeX Onetouch 4 y módulo UAV grado gratis-X GPS

Cargador

  • Voltaje de entrada: 100-240V
  • Corriente de salida: 1A / 2A / 3A
  • Compatibilidad: 7.4V / 11.1V / 14.8V

Especificaciones del transmisor

  • Frecuencia de transmisión: 2,4 GHz
  • Potencia de salida: < 100mW
  • Consumo de corriente: < 230mA (100mWh)
  • Pulso de salida: 1000-2000mS (SUB TRIM es de 1500)
  • Control a distancia (parada al aire libre/no): 1km

5.8 G Video Tx y Rx

  • Frecuencia de transmisión: 5,8 G
  • Potencia de salida: 600 MW
  • Receptor: 32CH
  • Control a distancia (parada al aire libre/no): 2km

Especificaciones Pantalla LDC

  • Resolución: 480H
  • Luz trasera: LED 5pcs
  • Ancho: 95mm
  • Ángulos de visión (arriba/abajo/izquierda/derecha): 50/65/60/60
  • Luminiscencia:<300LUX>
  • Temperatura de funcionamiento: -20 grados a 70 grados.
Features
  • Cardán brushless de 2 ejes CNC puede ser controlado desde el transmisor
  • Transmisor FPV con grande construido en el monitor LCD que muestra en vivo
  • En telemetría de vuelo de pantalla que muestra velocidad, altitud etc.
  • Capacidad de la batería 5400mAh grande
  • Maletín de aluminio con estilo incluido para transporte seguro y fácil.
  • Listo para volar justo fuera de la caja después de una simple calibración de la brújula.
  • Tablero de Control OneTouch 4 aviones
  • Dos modos de vuelo, GPS posición hold y actitud / asimiento de la altitud
  • Modo de vuelo sin cabeza sin preocupaciones
  • Función de Auto retorno GPS (con el mundo primero a tiempo completo todos los canales control activo durante RTH)
  • Los pilotos pueden elegir entre dos modos a la señal de control perdidas - volver a página de inicio o suspender en última posición.
  • Protección de baja tensión
  • Algoritmo del Protocolo de seguridad
  • Luces de LED de alta intensidad para facilitar la orientación durante el vuelo
  • Estructura de fuselaje fuerte
  • Cardán sin cepillo de la aleación de aluminio CNC completo opcional
Required To Use 8 pilas AA para el transmisor de radio

Available Downloads For This Item:

New Quick Start Guide

New Filmware
